Decoding ‘OL’
1. Understanding the Basics

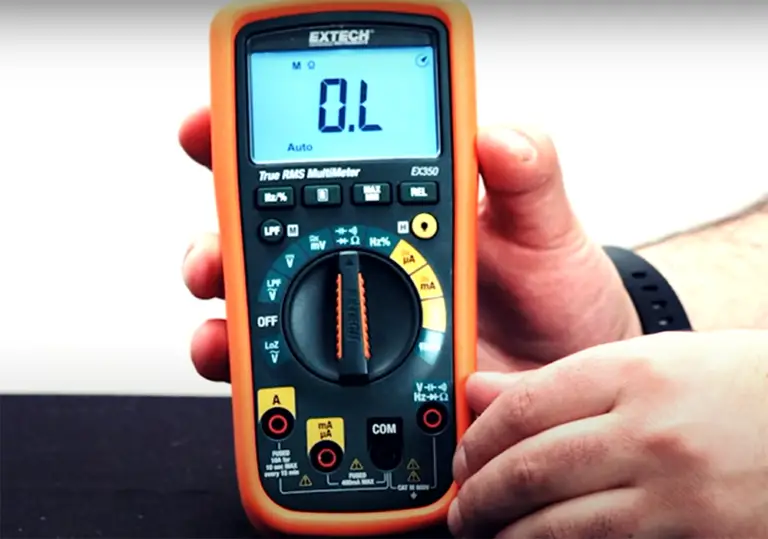

Ever stared at a multimeter displaying ‘OL’ and wondered if your project just hit a dead end? Well, fear not, fellow tinkerer! ‘OL’ on a multimeter typically stands for “Open Loop” or, more commonly, “Over Limit.” Essentially, it’s the meter’s way of telling you, “Hey, the value I’m trying to measure is way beyond my ability to measure it accurately!” Think of it like trying to weigh an elephant on a kitchen scale—it’s just not going to work!
But what does that actually mean when we’re talking about circuits? An open circuit is essentially a broken path. Imagine a highway with a collapsed bridge. Cars (electrons) can’t flow through, right? That’s an open circuit in a nutshell. No continuous path means no current flow, and that often leads to high resistance, potentially exceeding the multimeter’s measuring range.
So, when your multimeter throws up an ‘OL’ while measuring resistance, it’s highly suggestive of an open circuit somewhere. This isn’t necessarily a cause for panic, but it is a clear indication that something needs troubleshooting. It means the resistance is higher than the meter can display.
Think of it this way: if you’re trying to measure the distance from your house to the moon with a measuring tape, you’re going to run out of tape long before you get an accurate reading. ‘OL’ is your multimeter’s equivalent of saying, “My tape measure isn’t long enough for this!” Time to investigate further.
Why ‘OL’ Isn’t Always a Disaster
2. Context is King
Okay, so ‘OL’ often points to an open circuit. But let’s not jump to conclusions just yet! The context of your measurement is crucial. Sometimes, ‘OL’ simply means you’ve selected the wrong range on your multimeter. These things happen, especially when you’re juggling multiple projects and haven’t had your morning coffee. Been there, done that, got the ‘OL’ t-shirt!
For example, if you’re trying to measure a relatively small resistance (say, a few hundred ohms) but your multimeter is set to a megaohm range, it might display ‘OL’ because the actual value is too insignificant to register on that scale. It’s like using a telescope to look at a fly on your nose — the magnification is completely inappropriate!
Another scenario is when measuring extremely high resistances. Some components, like certain types of insulators, are designed to have extremely high resistance. If you’re trying to measure the resistance of a perfect insulator, ‘OL’ is exactly what you should see. It’s indicating that the insulator is doing its job perfectly by impeding the flow of electricity.
Before you start tearing apart your circuit in a frenzy, double-check your multimeter settings. Make sure you’re using the appropriate range for the component or circuit you’re testing. Start with the highest range and work your way down until you get a meaningful reading. This simple step can save you a ton of time and unnecessary frustration.
